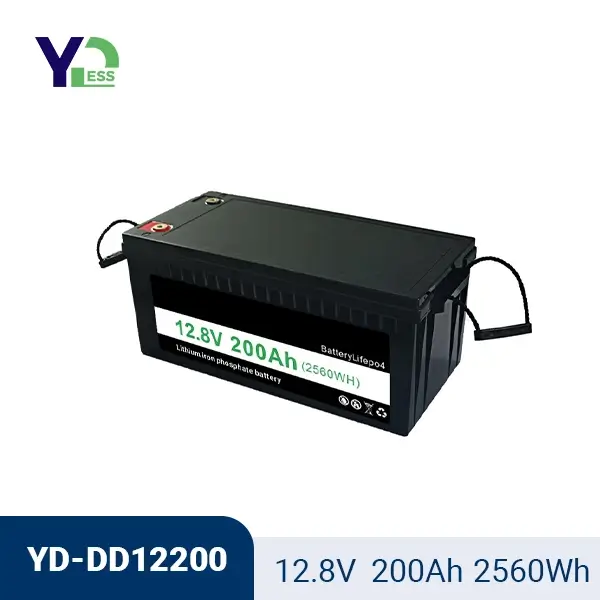

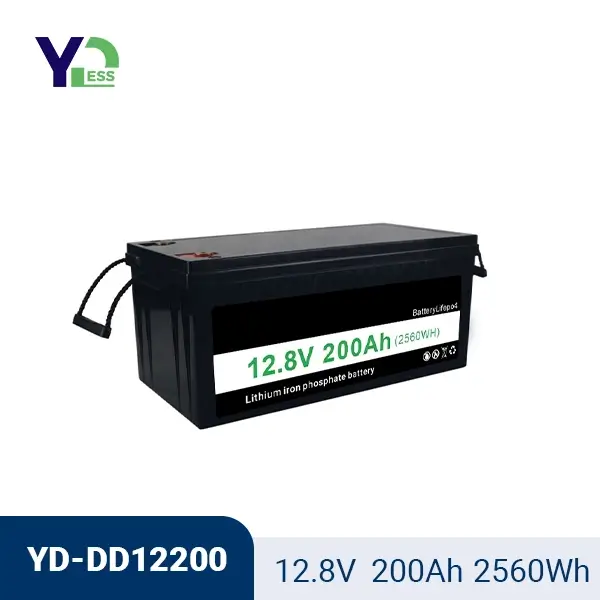

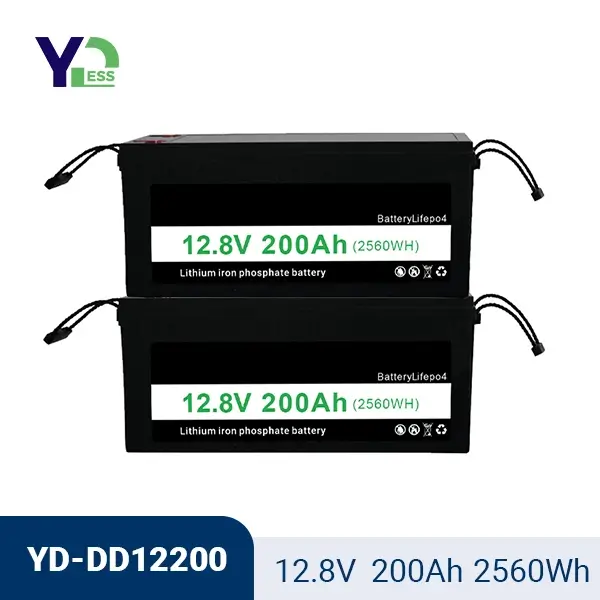

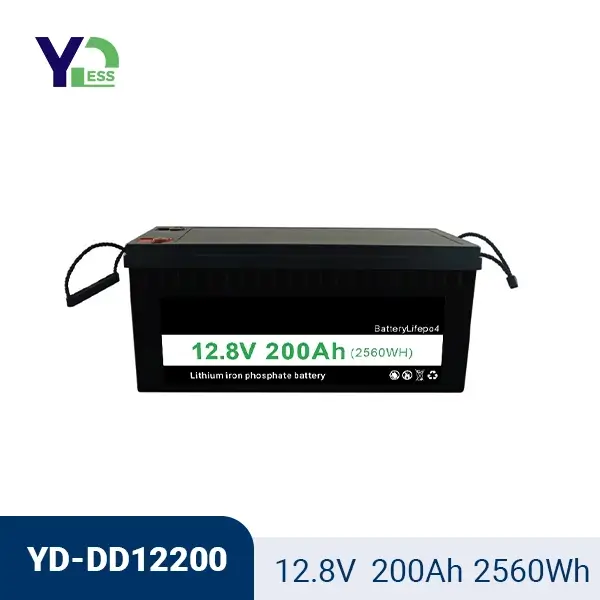

Model: YD-DD12200
Battery Type: LiFePO4 battery
Rated Capacity: 2.560KWh
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah
Charging Current: 0.2C(Standard);1C(Max)
Charging Method: CC & CV
Voltage Range: 2.5V～3.65V
Weight: ≤ 20KG

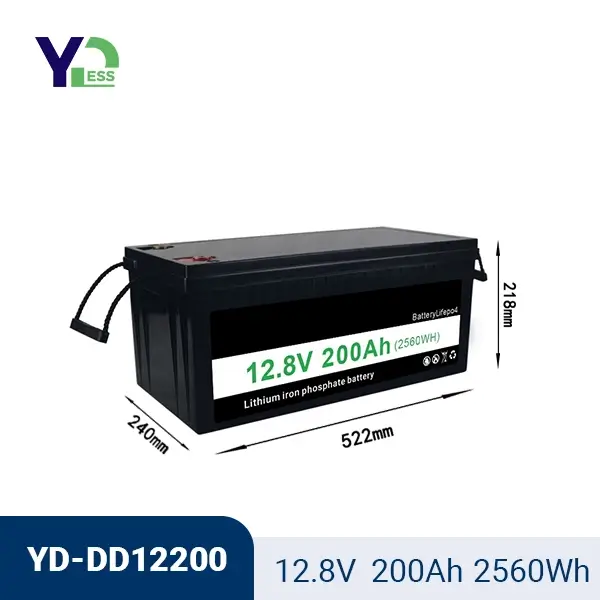

Dimension: 52.2 x 24 x 21.8cm
Inquire Now
Tags: 200Ah ,
This ABS LiFePO4 battery, also known as the 12v 200Ah LiFePO4 Battery, is suitable for a variety of scenarios, including solar systems, RVs, home energy storage, yachts, and street lighting. It is equipped with an advanced smart Battery Management System (BMS) and supports remote monitoring and data reading via an APP or LED (with optional WiFi/Bluetooth functionality). Available in multiple models, it offers flexible solutions to meet diverse needs, ensuring efficient and secure energy storage.
Dining Car Electricity
UPS Power Supply
In-car Electricity
Outdoor Electricity
Home Backup Power
Solar Energy Storage
We are a professional energy storage product manufacturer from China
YDESS Factory started to enter the lithium battery industry in 2013. It is a source factory integrating R&D design, production and processing, and customized sales.
If you have the need to produce batteries, we will provide you with high-quality technical solutions to meet your needs.
Product Detection
Packing & Shipping
High Temperature Detection
Battery Inventory
YDESS Factory started to enter the lithium battery industry in 2013. It is a source factory integrating R&D design, production and processing, and customized sales.
If you have the need to produce batteries, we will provide you with high-quality technical solutions to meet your needs.
Download 12v 200Ah LiFePO4 Battery Datasheet
2560Wh
LiFePO4
≥3,600 Cycles(0.5C standard charge)
BMS, Over Voltage Protection,Short Circuit Protection
0.2C(Standard);1C(Max)
CC & CV
100A
≈20kg (44.09lbs)
52.2cm (20.55in)
24cm (9.44in)
21.8cm (8.58in)
2 Years
Charging: 0 ~ 60℃；| (32.0 - 140F)
Discharging: -20 ~ 60℃ | -20 - 60℃ (-4 - 140F)
YDESS invites you to leave your contact information so that we can provide you with product support in the future.
Lead-acid batteries are already a very backward battery. They require frequent maintenance, have a slow charging speed, are very heavy, and have a low energy density. LiFePO4 batteries are superior to lead-acid batteries in all aspects, such as longer service life, higher energy density, faster charging speed, higher safety, lower maintenance requirements, better temperature resistance, more environmentally friendly, higher discharge efficiency, and lower self-discharge rate.
