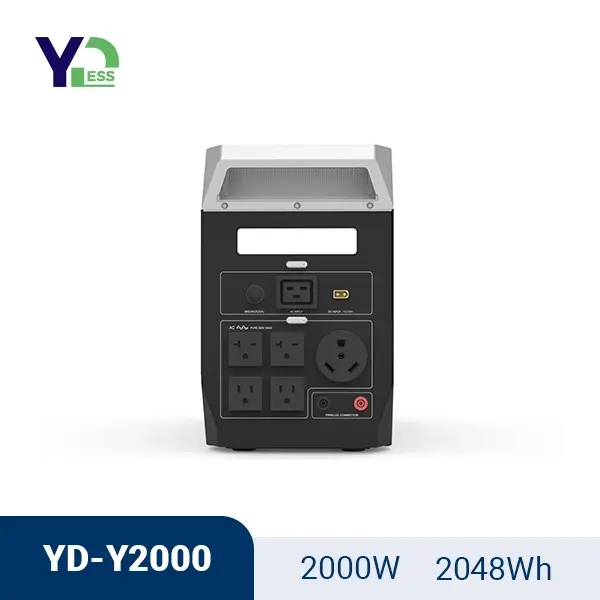

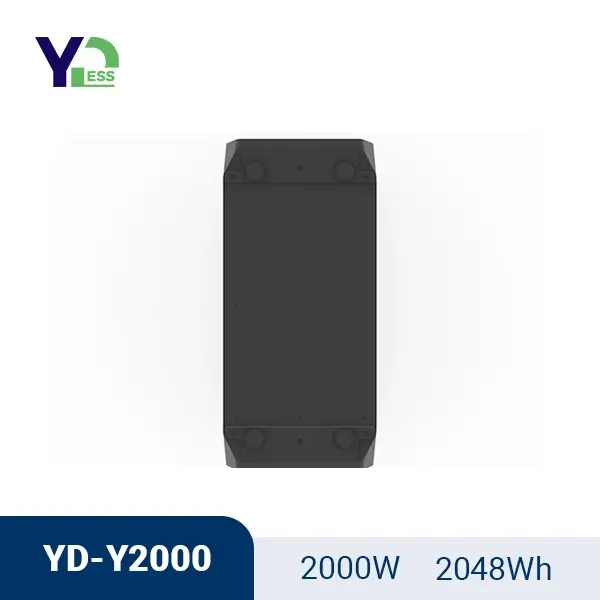

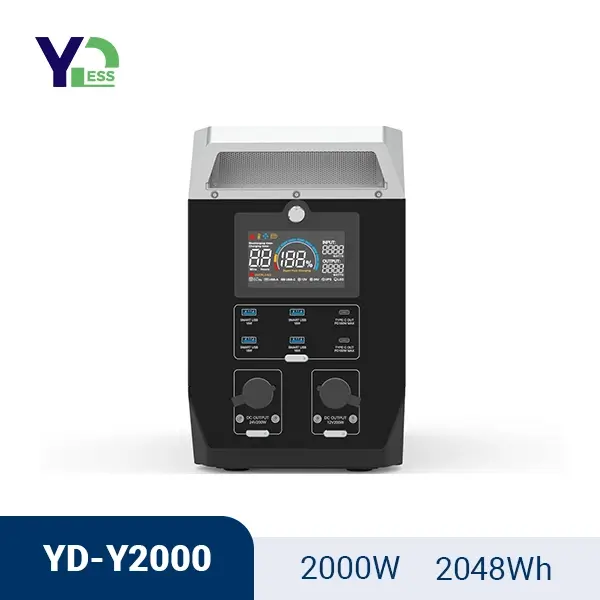

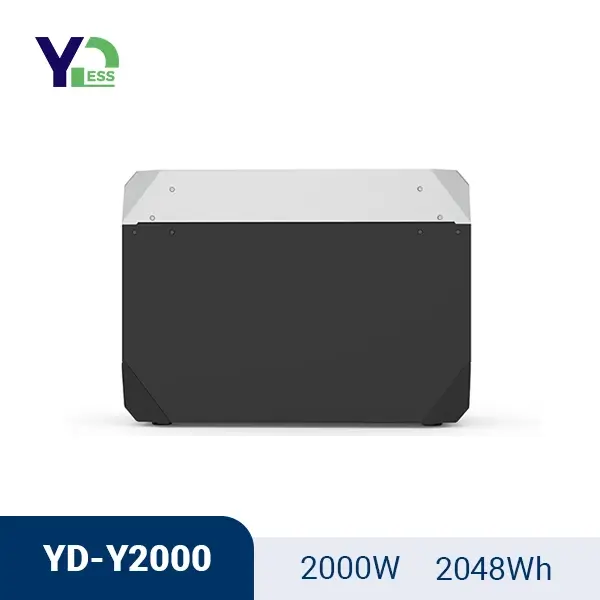

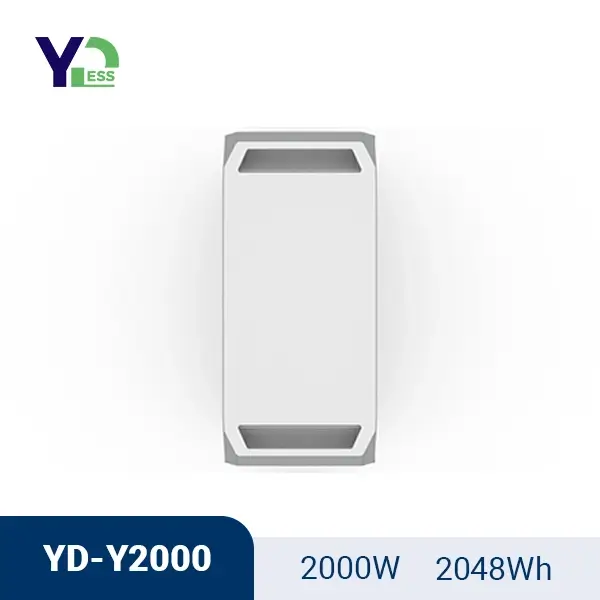

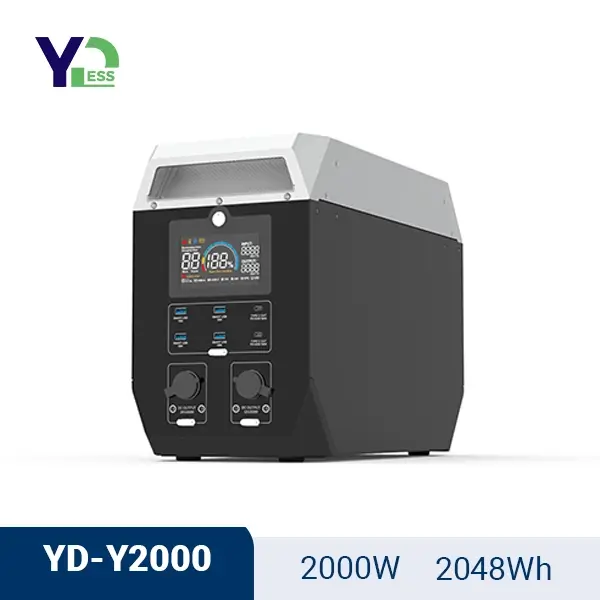

Model: YD-Y2000
Inverter: Pure Sine Wave | 2000W
Battery: LiFePO4
Capacity: 2048Wh | 640000mAh 3.2V
DC Output: 12v/18A Max200w
AC Output: 2000W
PD Output: 100W
Product Weight: 24kg
Product Size: 202*440*325H mm
Custom: ODM | OEM | AC Ports
MOQ: 1 pcs
Inquire Now
MODEL
CHARGING TIME
200w
ABOUT 12-15H
200W X2
ABOUT 5-7H
400w
ABOUT 5-7H
400W X2
ABOUT 3-4H
Safety first
Download 2000W YD-Y2000 Portable Power Station 2048Wh Datasheet
| Model | YD-Y2000 | |
| AC output | Output Voltage | 100~120VAC 、220~240VAC |
| Output Waveform | Pure sine wave | |
| Rated Power | 2000W | |
| Power Protection | 2200W (peak 4000W 1mS) | |
| Frequency range | 50Hz/60Hz ±3Hz | |
| Conversion efficiency | >92% | |
| Short circuit protection | Yes, short circuit removed, automatic release | |
| Temperature protection | Temperature protection over 65°C | |
| Operation mode | Press the AC button (about 1~2S) to switch on and off. | |

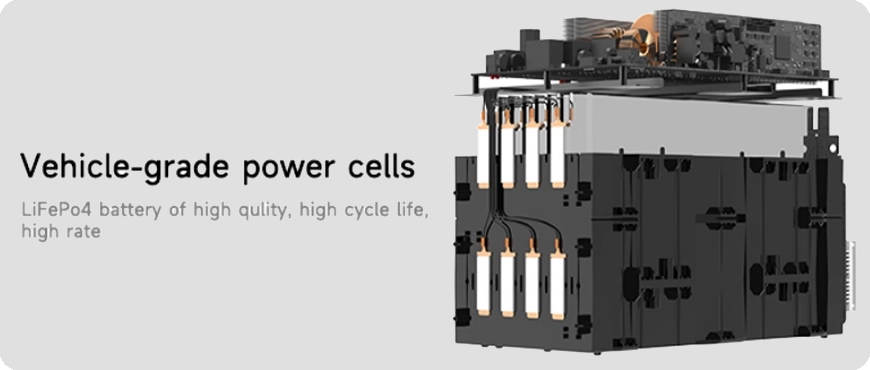

| Battery Characteristics | Battery Type | Lithium iron phosphate, blade battery |
| Total capacity | 640000mAh | |
| Battery Energy | 2048Wh | |
| Combination method | 10S2P | |
| Charging function Charging port | AC Power | Utility fast charging AC (100~140VAC), maximum power 1000W, about 2H full |
| Car Charging | Standard car charger to XT60 line, 12-15VDC/8A, 20-28Vdc/8A | |
| Solar Charging | 18-72VDC, built-in MPPT circuit, current max. 20A, power max. 800W | |
| Charging Temperature | 0~50℃ | |
| UPS function | With UPS function, the maximum utility input 16A, UPS response time 10mS | |
| DC Output | TYPE-C1 | PD100W,5V3A,9V3A,12V3A,15V3A,20V5A |
| TYPE-C2 | PD100W,5V3A,9V3A,12V3A,15V3A,20V5A | |
| USB-A QC | QC3.0,5V3A,9V2A,12V1.8A | |
| USB-A QC | QC3.0,5V3A,9V2A,12V1.8A | |
| 12VDC | Car charger and DC5521 shared output circuit, 12VDC 200W | |
| 24VDC | Car charger and DC5521 shared output circuit, 12VDC 200W | |
| LED lighting | 4 modes: low light, high light, SOS, burst flash mode | |

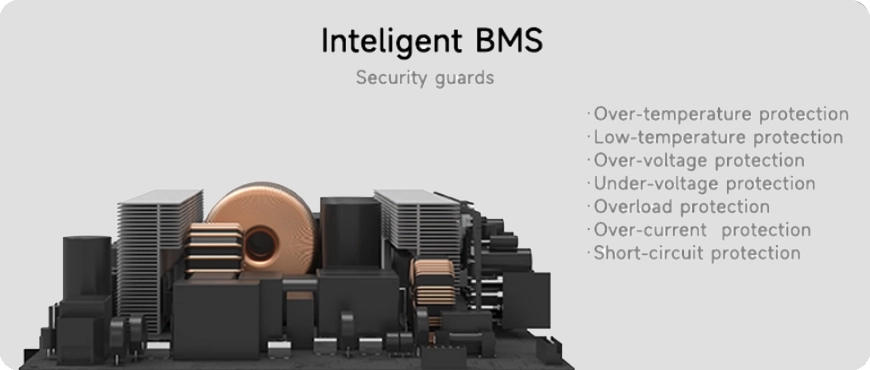

| BMS | Protection function | 1. overcharge protection, 2. over discharge protection, 3. temperature protection, 4. overcurrent protection, 5. short circuit protection, 6. SOC calculation |
| Rated current | 75A | |
| Battery voltage range | Single cluster voltage 2.8~3.65V, whole cluster voltage: 28~36.5V | |
| Operating noise | < 60dB | |

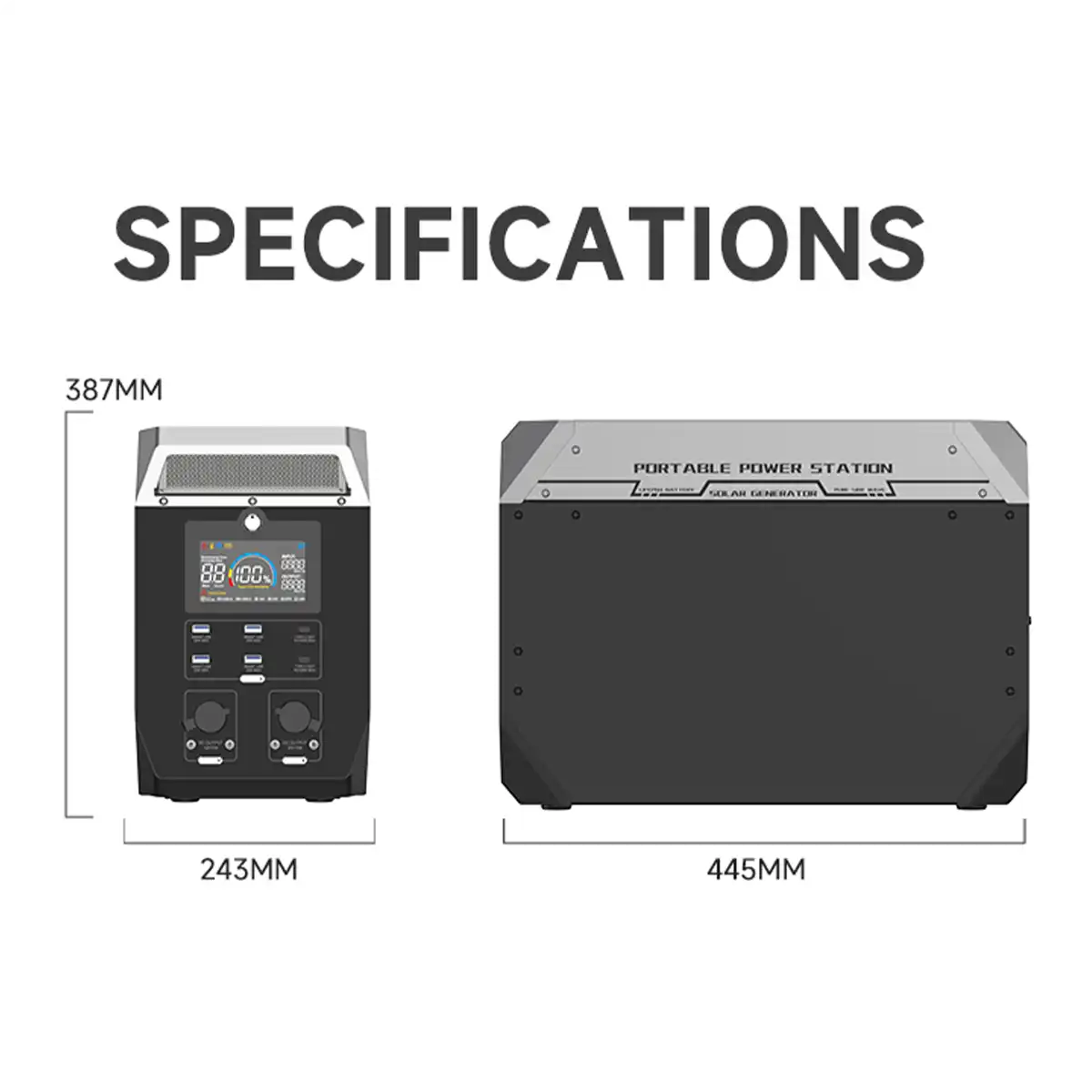

| Weight & Size | Host weight | 24KG |
| Host size | 202*440*325H mm | |
| Set weight | 28Kg | |
| Package Size | 552*35*455mm | |
| HS Code | 8507600090 | |
| Container carrying capacity | 20GP | With pallet：10 pallets，240 carton/Without pallet：315carton |
| 40HC | With pallet：20 pallets，480carton/Without pallet：792carton | |
| Certification | CE/FCC/ROSH/PSE/UN3.3/MSDS | |
YDESS invites you to leave your contact information so that we can provide you with product support in the future.

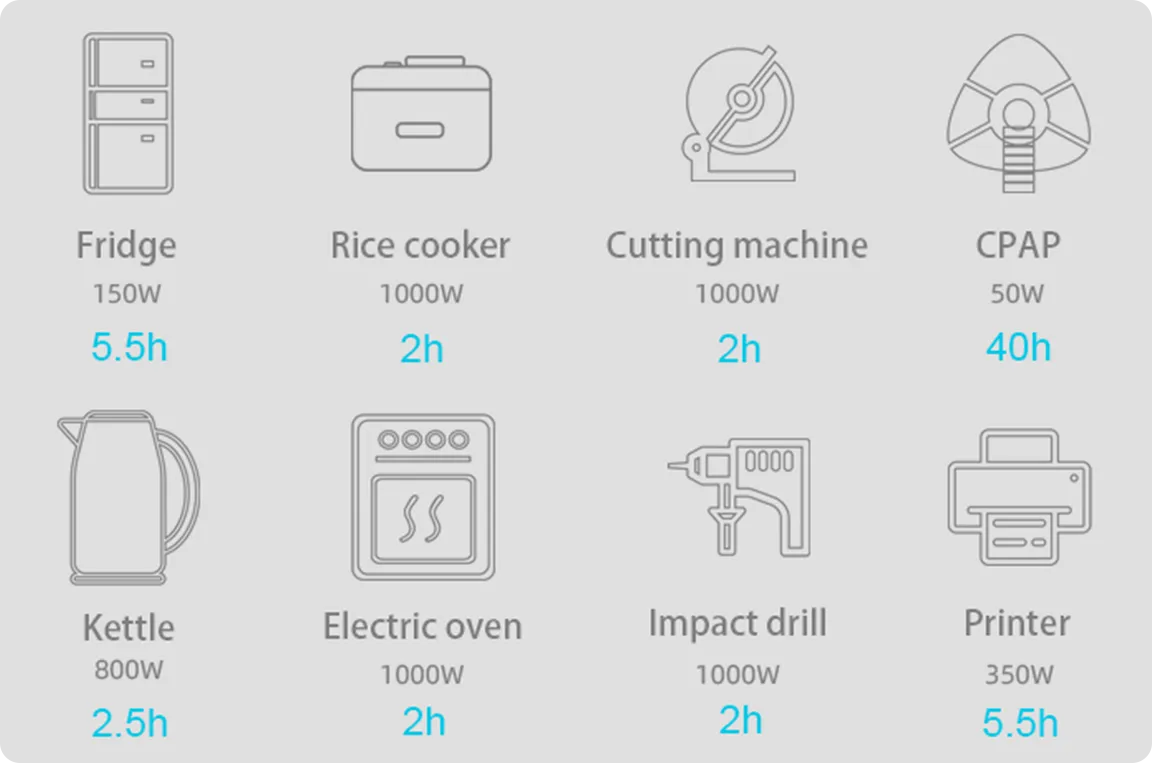

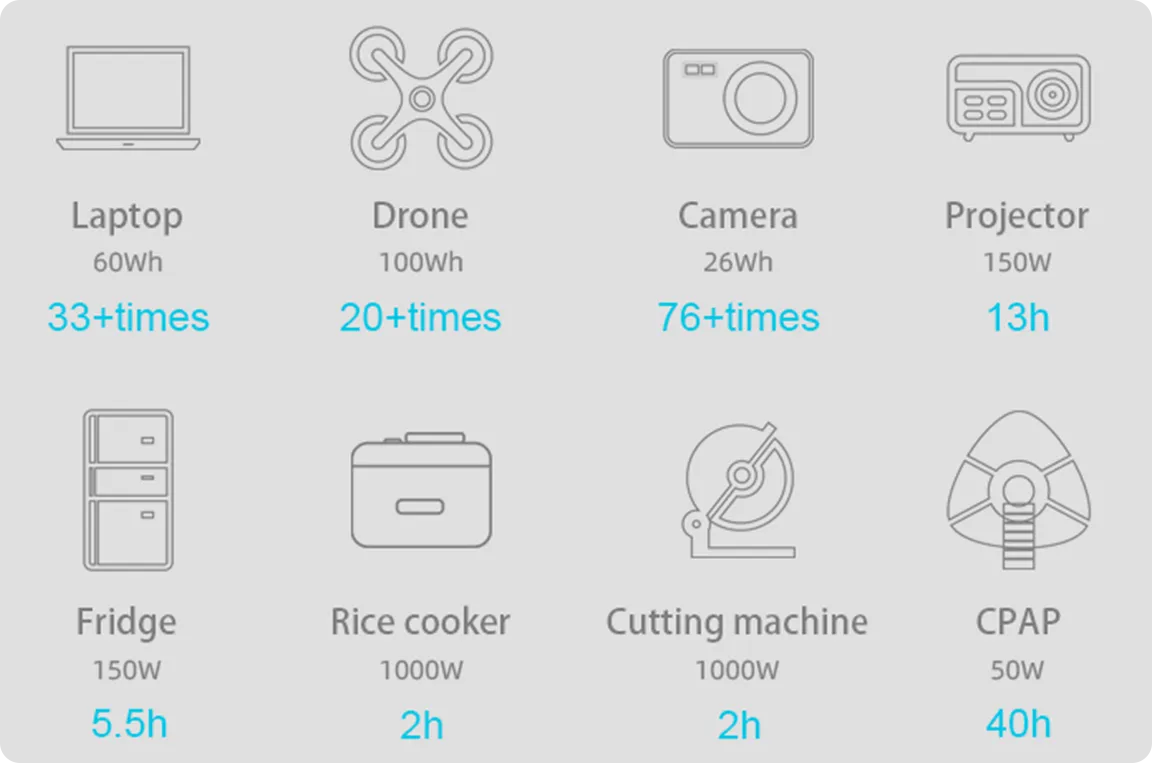

A portable power station can be used to power a
wide range of electronic devices, including laptops, smartphones, tablets,
cameras, and even small appliances like portable heaters, fans, and air
compressors. However, the power of a portable power station can provide depends
on the battery capacity and the power rating of the inverter.
For example, a small portable power station with a lithium-ion battery may be able to power a smartphone and a laptop for several hours, while a larger portable power station with a lead-acid battery may be able to power a refrigerator and a television for a few hours.
When buying a portable power station, most
important need to consider is the battery capacity and the types of devices
you'll be powering. This will help you choose a portable power station with the
right size, battery capacity, and power rating to suit your needs.
When buying a portable power station, there are
several key factors need to consider, including the size and weight of the
unit, the type of battery it uses, the battery capacity it can provide, the
power rating, AC voltage, the number and types of outlets or ports it has.
Size and weight
The portable power station should be small and light enough to be carried easily, but also large enough to provide the required battery capacity and power rating. Consider the size and weight of the portable power station, as well as the size and weight of the battery and any accessories you may need, such as a carrying case or solar panels.
For example, lithium-ion batteries are
lightweight and have high energy density, are more environmentally friendly,
and have a long service life, but they are expensive. On the other hand,
lead-acid batteries are heavier and have lower energy density, but they are
cheaper and have a shorter service life.
Power output
The battery capacity of a portable power station
can provide is measured in watts hours. When buying a portable power station, most
important is need to consider the power wattage that the devices you need to
power. For example, if you need to power a laptop and a smartphone, you may
only need a portable power station with a few hundred watts of power. However,
if you need to power a refrigerator, a television, and several other
appliances, you may need a portable power station with thousands of watts of power.
Outlets and ports

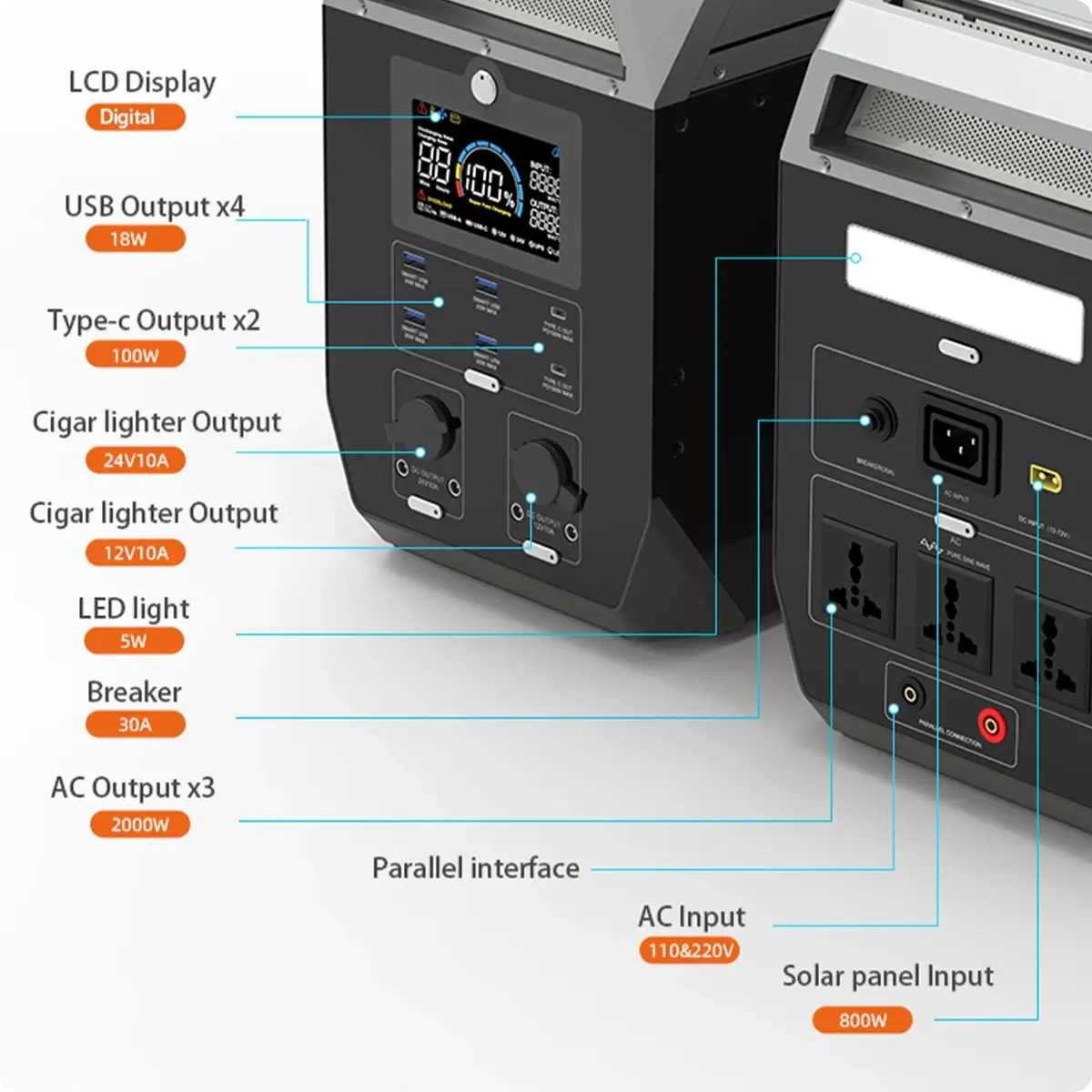

The number and types of outlets and ports on a
portable power station will determine how many and what types of devices you
can power. Most portable power stations have at least one AC outlet, which can
be used to power appliances that require standard household electricity. Some
portable power stations also have multiple DC terminals that can be used to
power devices that require DC power, such as laptops and smartphones. In
addition, many portable power stations have ports such as PD, USB, DC5521, etc.,
which can be used to charge devices such as smartphones and tablets, speakers,
light bulbs, etc.
When shopping for a portable power station, it's
important to consider the types of outlets and ports you need to power your
devices. This will help you choose a portable power station with the right
number and types of outlets and ports for your needs.
Using a portable power station is relatively
simple, but there are a few key steps to follow to ensure it works properly and
lasts for years to come.
To use a portable power station
Charge the battery: Before using your portable power station, be sure to fully charge the battery. This will ensure that you have enough power to power your devices. Most portable power stations can be charged via a wall outlet, a car charger, or a solar panel.
