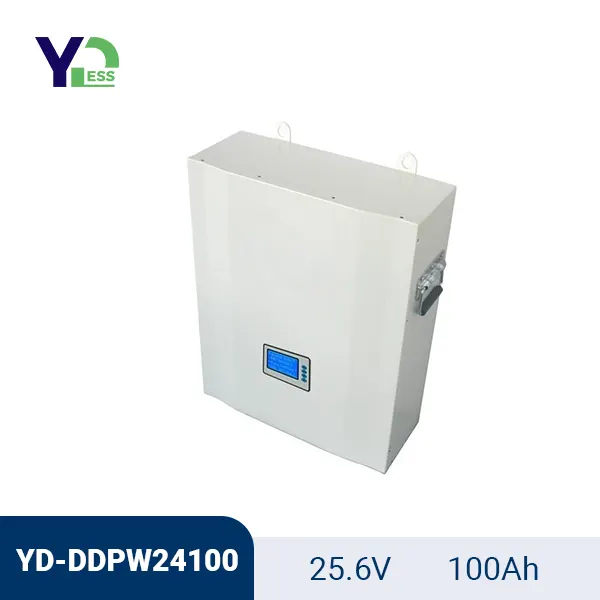

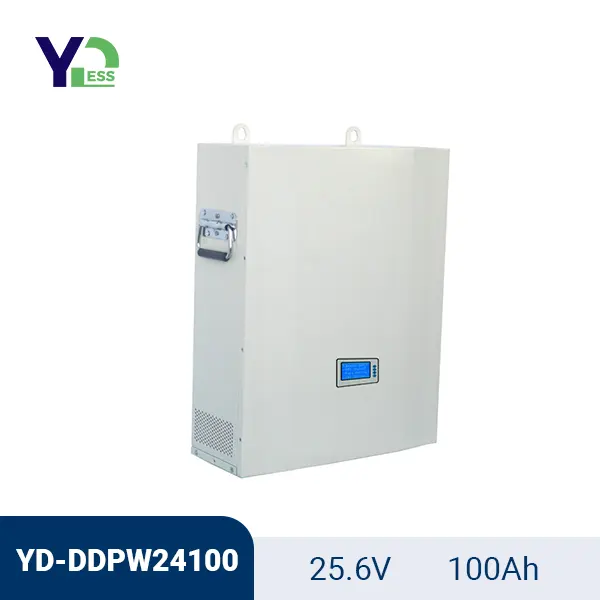

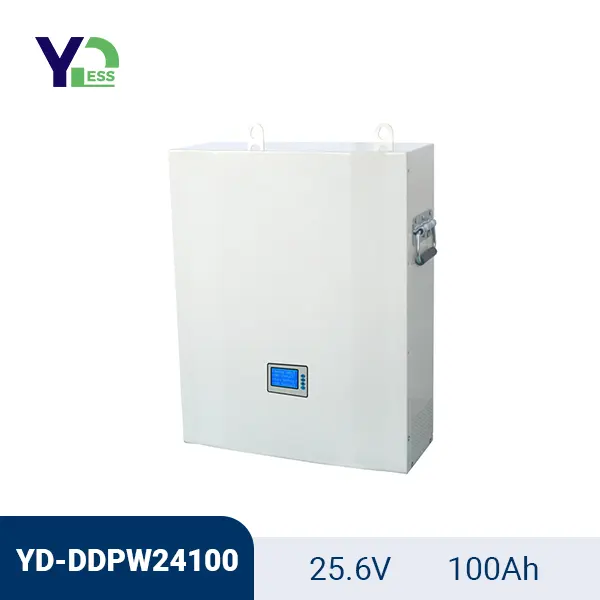

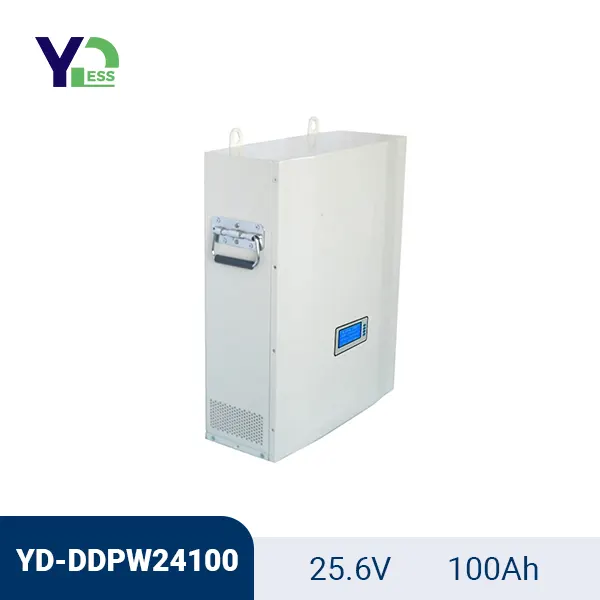

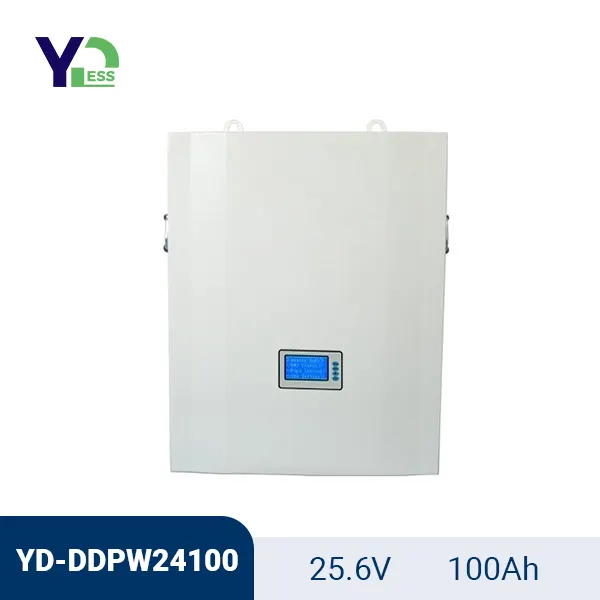

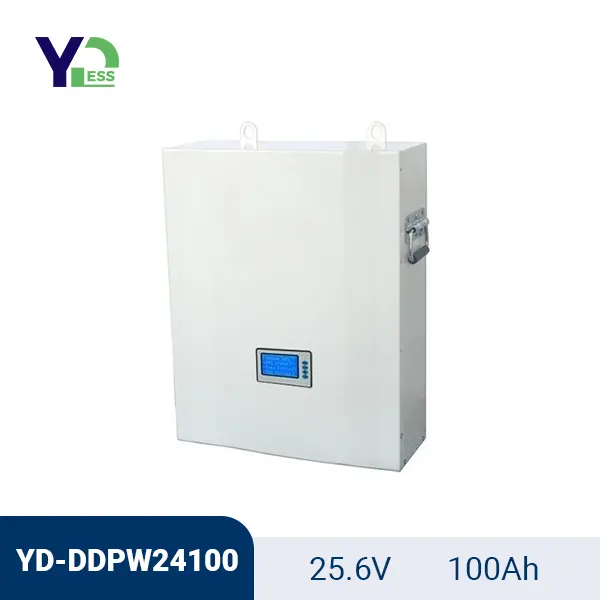

25.6V 100Ah Home Storage Batteries LiFePO4 Batteries

    Model: YD-DDBGSG24100

    Power: 2560Wh

    Battery: LiFePO4

    Battery pack voltage range:DC21V~29.2V

    Standard charging current: ≤100A

    Standard discharge current: ≤100A

    Installation method: Wall-mounted

    Product Weight: ≈26Kg

    Product Size: 371*375*150mm


    Custom: ODM | OEM | Shape | Size | Voltage

    MOQ: 1 pcs


Inquire Now

Tags: LiFePO4 , 2560Wh , 100Ah , 25.6V ,



Battery

Capacity:

2560Wh

Cell Chemistry:

LiFePO4

Cycle life:

>6000

Management System:

BMS, Over Voltage Protection,Short Circuit Protection

Battery parameter

Rated voltage

25.6V

Battery pack voltage range:

21V~29.2V

Combination:

1P8S

Standard charging current:

≤100A

Standard discharge current:

≤100A

Dimensions

Weight:

26kg

Length:

37.1cm (14.6in)

Width:

37.5cm (14.76in)

Height:

15cm (5.9in)

General

Warranty:

3+2 Years

Operating Usage Temperature:

Charging: 0~45”℃ Discharging: -30~55°C

Lead-acid batteries are already a very backward battery. They require frequent maintenance, have a slow charging speed, are very heavy, and have a low energy density. LiFePO4 batteries are superior to lead-acid batteries in all aspects, such as longer service life, higher energy density, faster charging speed, higher safety, lower maintenance requirements, better temperature resistance, more environmentally friendly, higher discharge efficiency, and lower self-discharge rate.
