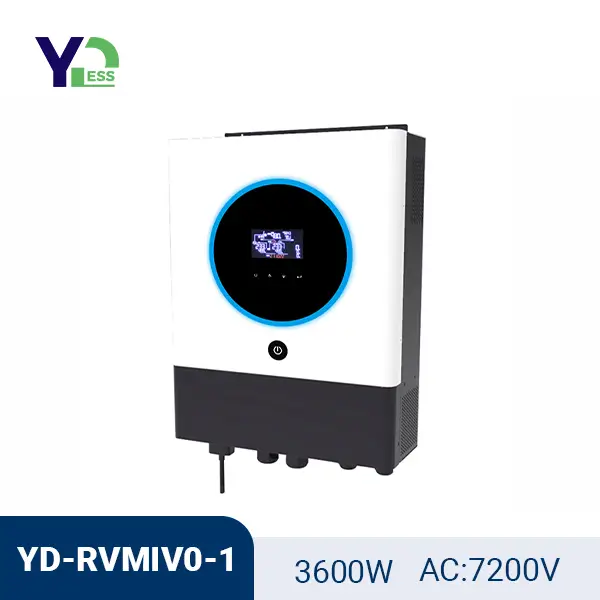

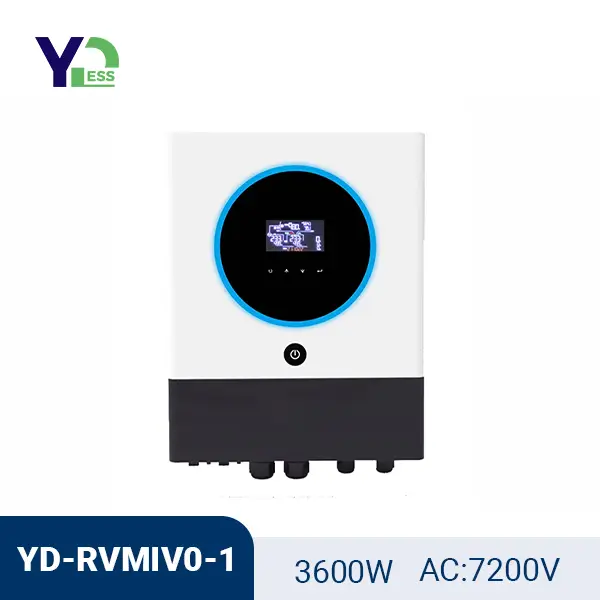

Model: YD-RVMIV0-1
Type:Hybrid
Rated Power(W): 3600W | 5600W | 8000W | 11000W
Custom: ODM | OEM | Shape | Size
MOQ: 1 pcs
Inquire Now
Tags:
YD home storage inverter devices integrate solar, battery, grid, generator and electric vehicle power to provide power backup during power outages, peak hours, and even when you want to go off the grid 24/7.
In addition, it can also help you manage energy intelligently, helping you reduce your final electricity bill and strive towards 100% energy independence.
YDESS home storage inverter is user-friendly, safe and simple, with clear interface and convenient operation.
Our products comply with the safety standards of many countries, allowing you to use electricity without worry.
Can be connected to APP for remote control, allowing you to easily understand the power usage at home
Supports connecting multiple power storage devices in series, allowing you to adjust power storage strategies in a timely manner
There are two different versions, 3000W and 6000W, you can choose a more suitable product according to your family situation
Simple appearance, no extra functions and buttons, making operation easier
Rated Power
3600W | 5600W | 8000W | 11000W
Max. PV array power(W):
5500 | 4000*2 | 5500*2
Surge power:
7200 | 11200 | 16000 | 22000
Communications
WiFi | Bluetooth
Remote Monitoring
Web & Mobile App
We are a professional energy storage product manufacturer from China
YDESS Factory started to enter the lithium battery industry in 2013. It is a source factory integrating R&D design, production and processing, and customized sales.
If you have the need to produce batteries, we will provide you with high-quality technical solutions to meet your needs.
Product Detection
Packing & Shipping
High Temperature Detection
Battery Inventory
YDESS Factory started to enter the lithium battery industry in 2013. It is a source factory integrating R&D design, production and processing, and customized sales.
If you have the need to produce batteries, we will provide you with high-quality technical solutions to meet your needs.
Download 3600W Hybrid Inverter Datasheet
3600W | 5600W | 8000W | 11000W
230
120-280
50/60
7200 | 11200 | 16000 | 22000
220/230/240
Pure sine wave
50/60
up to 93.5%
10ms typical (narrow range); 20ms typical (wide range)
24 | 48 | 48 | 48
27 | 54 | 54 | 54
31 | 63 | 60 | 63
Lithium & Lead-acid
500
5500 | 5500 | 4000*2 | 5500*2
90-450
18 | 18 | 18*2 | 27*2
120 | 120 | 120 | 150
100 | 100 | 120 | 150
120 | 120 | 120 | 150
0~90% RH (No Condensing)
0 to 50°C
9 | 10 | 18.8 | 20
302*500*132.5 | 302*500*132.5 | 420*561.6*152.4 | 420*561.6*152.4
YDESS invites you to leave your contact information so that we can provide you with product support in the future.
Lead-acid batteries are already a very backward battery. They require frequent maintenance, have a slow charging speed, are very heavy, and have a low energy density. LiFePO4 batteries are superior to lead-acid batteries in all aspects, such as longer service life, higher energy density, faster charging speed, higher safety, lower maintenance requirements, better temperature resistance, more environmentally friendly, higher discharge efficiency, and lower self-discharge rate.
