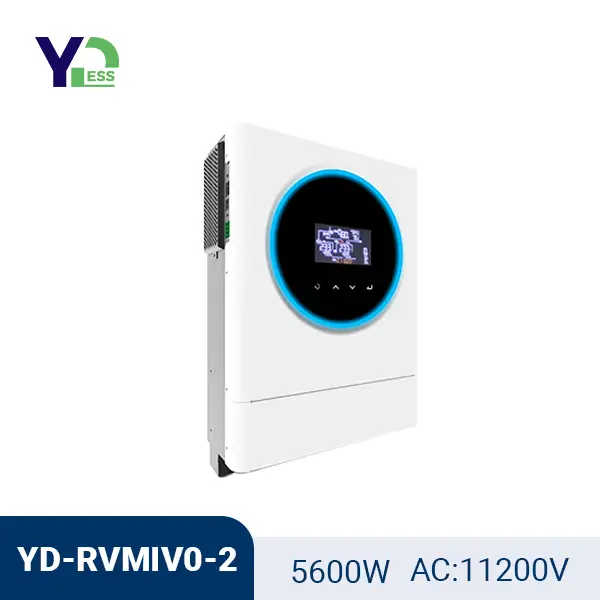

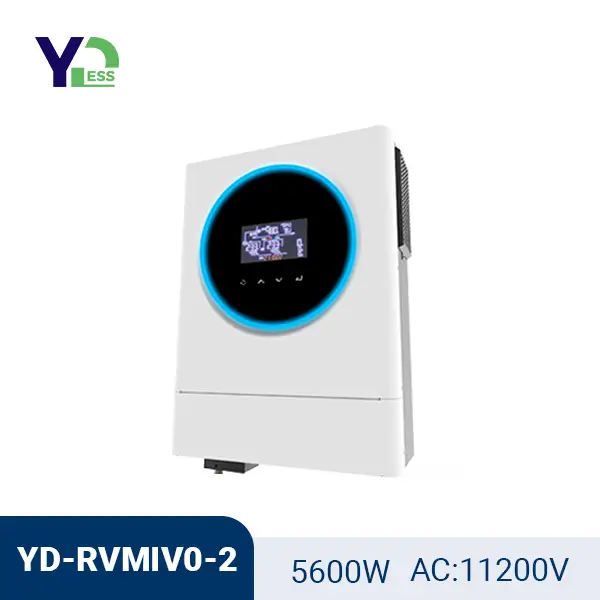

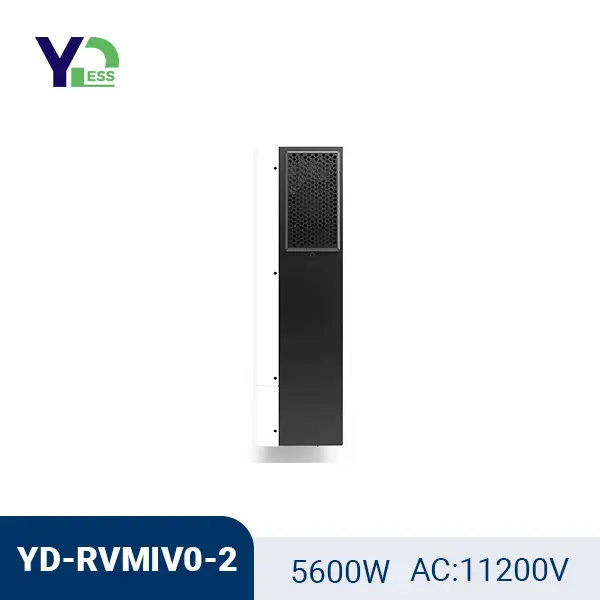

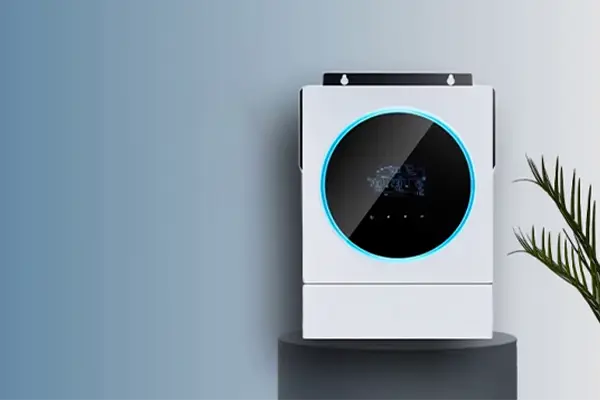

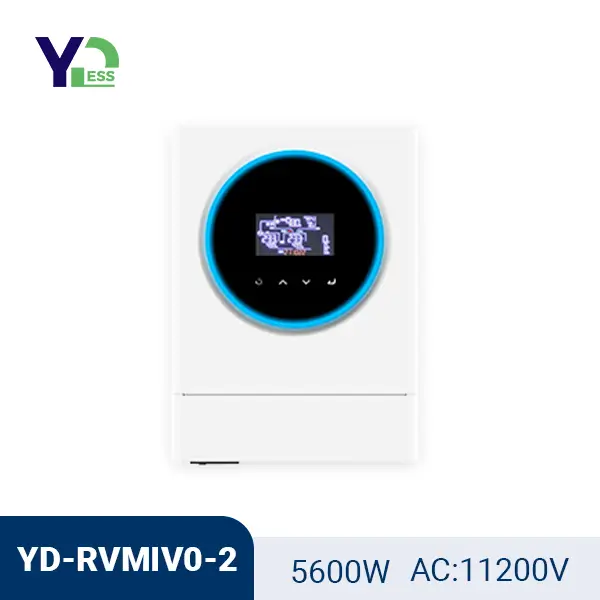

5000w Home Grid-Connected Inverter

    Model: YD-RVMIV0-2

    Type: Grid Tie Inverter

    Rated Power(W): 3600W | 5600W | 8000W | 11000W


    Custom: ODM | OEM | Shape | Size

    MOQ: 1 pcs


Inquire Now

Tags:

The content is being updated~

Download 5000w Home Grid-Connected Inverter Datasheet

Power

Rated Power(W):

3600W | 5600W | 8000W | 11000W

AC INPUT

Nominal Voltage(VAC):

230

Voltage range(VAC):

120-280

Frequency range(Hz):

50/60

AC OUTPUT

Surge power:

7200 | 11200 | 16000 | 22000

Output voltage(VAC):

220/230/240

Output wave form:

Pure sine wave

Rated Frequency(Hz):

50/60

Efficiency:

up to 93.5%

Transfer me:

10ms typical (narrow range); 20ms typical (wide range)

BATTERY

Nominal DC voltage(VDC):

24 | 48 | 48 | 48

Floang charge voltage(VDC):

27 | 54 | 54 | 54

Overcharge protecon(VDC):

31 | 63 | 60 | 63

Baery type:

Lithium & Lead-acid

SOLAR CHARGER & AC CHARGER

Max. PV array open circuit voltage(VDC):

500

Max. PV array power(W):

5500 | 5500 | 4000*2 | 5500*2

MPPT input voltage range@operang(VDC):

90-450

Max. input current(A):

18 | 18 | 18*2 | 27*2

Max. solar charging current(A):

120 | 120 | 120 | 150

Max. AC charging current(A):

100 | 100 | 120 | 150

Max. charging current(A):

120 | 120 | 120 | 150

ENVIRONMENT

Humidity:

0~90% RH (No Condensing)

Operang Temperature:

0 to 50°C

Net Weight(KG):

9 | 10 | 18.8 | 20

Dimensions D x W x H (mm):

302*500*132.5 | 302*500*132.5 | 420*561.6*152.4 | 420*561.6*152.4

Lead-acid batteries are already a very backward battery. They require frequent maintenance, have a slow charging speed, are very heavy, and have a low energy density. LiFePO4 batteries are superior to lead-acid batteries in all aspects, such as longer service life, higher energy density, faster charging speed, higher safety, lower maintenance requirements, better temperature resistance, more environmentally friendly, higher discharge efficiency, and lower self-discharge rate.
