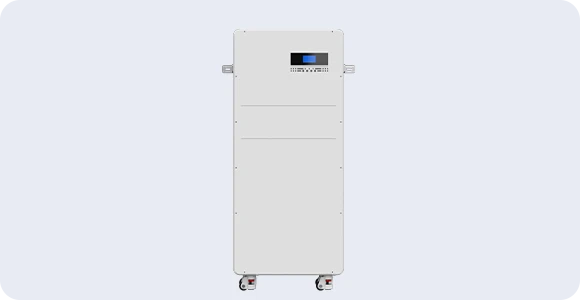

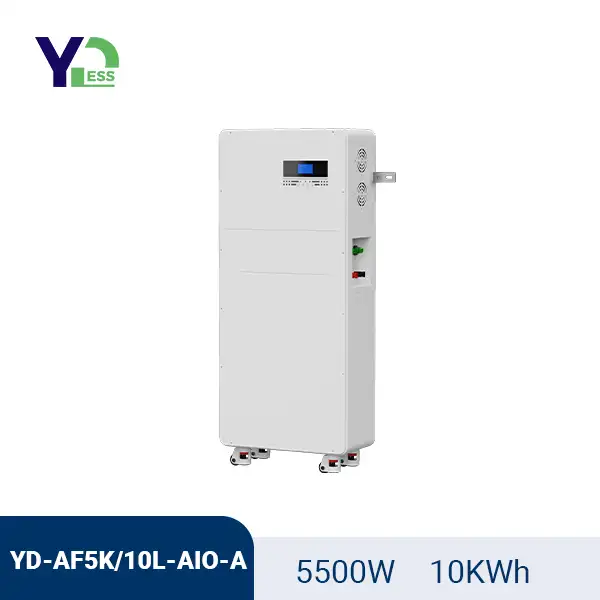

LiFePO4 Battery

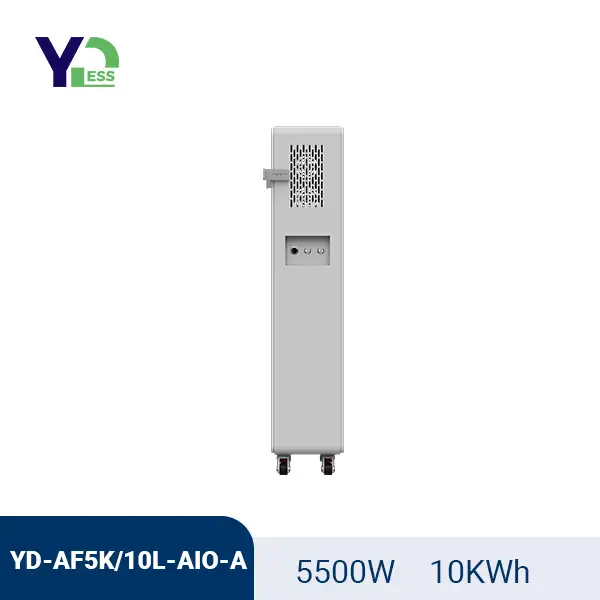

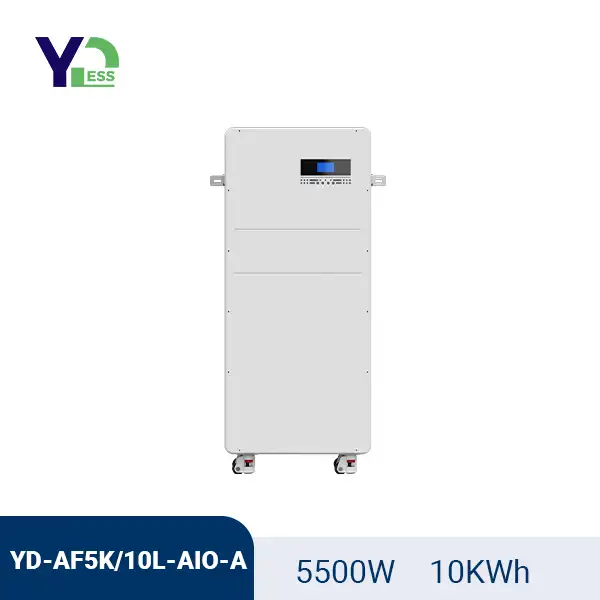

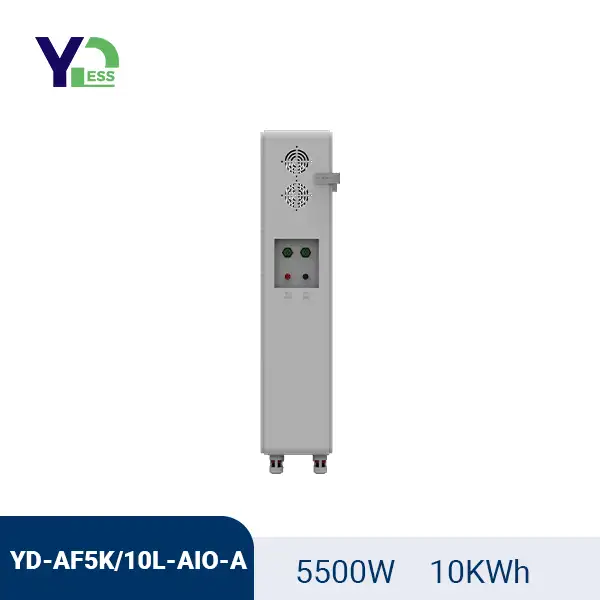

Model: YD-AF5K/10L-A1O
Product rated energy: 10KWh
Rated capacity: 100Ah
Rated voltage: 51.2v
Battery: LiFePO4
Battery pack voltage range: DC44.8V~57.6V
Standard charging current/discharge current: ≤100A
Installation method: Floor-standing
Product Weight: ≈101kg
Product Size: 1081*485*237mm
Custom: ODM | OEM | Shape | Size
MOQ: 1 pcs
Inquire Now
Download 51.2v 100ah Home Storage Battery Systems Datasheet
| Model | YD-AF5K10L-AIO | |

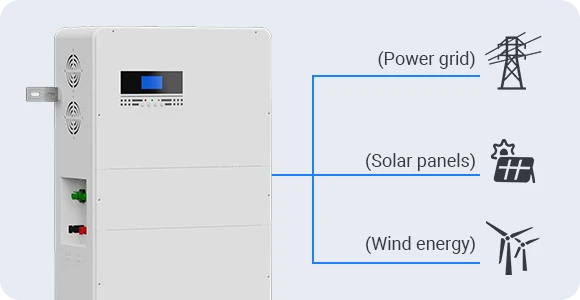

| Input | Input Sources | L+N+PE |
| Rated Input Voltage | 208/220/230/240VAC | |
| Voltage Range | 154-264VAC+3V(APP Mode)/185-264VAC+3V(UPS Mode) | |
| Freqency | 50Hz/60Hz(Auto Adaptive) | |
| output | Rated Power | 5500W |
| Output Voltage | 208/220/230/240VAC+5% | |
| Output Frequency | 50/60Hz+0.1% | |
| Waveform | Pure Sine Wave | |
| Transfer Time(Adjustable) | Computers(UPS Mode)10ms, Appliance(APP Mode)20ms | |
| Peak Power | 11000VA | |
| Over Load Ability | Battery Mode: 1min@102%~110% Load ;10s@110%~130% Load ; 3s@130%~150% Load ;200ms@>150% Load | |
| Peak Efficiency(Battery Mode) | >94% | |
| Battery | Battery Votage | 48Vdc |
| Constant Charging Voltage (Adjustable) | 56.4Vdc | |
| Floate Charging Voltage (Adjustable) | 54Vdc | |
| Chargers | PV Charging Mode | MPPT |
| MAX.PVInput Power | 5500W | |
| MPPT Tracking Range | 120~500Vdc | |
| Best Voltage | 300~400Vdc | |
| MAX.PV Input Voltage | 500Vdc | |
| MAX.PV Charging Current | 100A | |
| MAX.AC Charging Current | 60A | |
| MAX. Charging Current | 100A | |
| Display | LCD Display | Display Running Mode/Loads/input/Output etc. |
| Interface | RS232 | 5PIN/Pitch 2.0mm, Baud Rate 2400 |
| Communication Port | 2x5PIN/Pitch 2.54mm, Lithium Battery BMS Communication Card, Dry Contact | |
| Environments | OperatingTemperature | 0~40℃ |
| Humidity | 20%~95%(Non-condensing) | |
| Storage Temperature | -15~60°C | |
| Altitude | Altiude Not Over 1000m, Derating over 1000m, Max 4000m, Refer to lEC62040 | |
| Noise | ≤50db | |
YDESS invites you to leave your contact information so that we can provide you with product support in the future.
Generally speaking, there is no upper limit to the battery capacity of a home energy storage system, just like you can connect many batteries in series for use. However, we recommend that customers consider customizing the appropriate capacity of the home energy storage battery based on their budget and home electricity needs, rather than blindly pursuing the maximum capacity.
