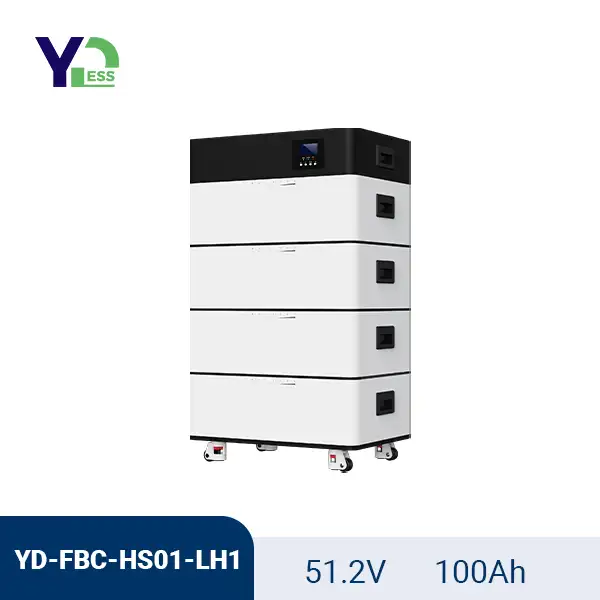

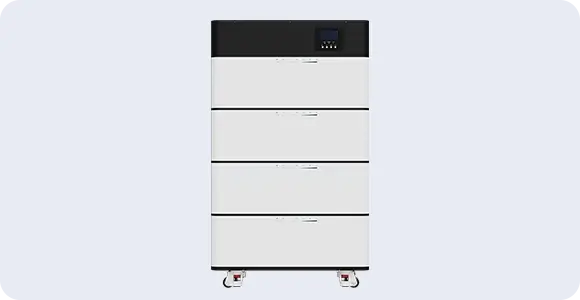

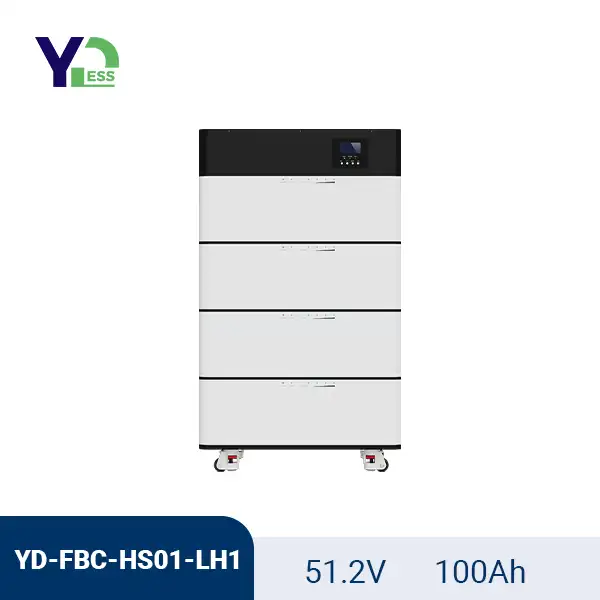

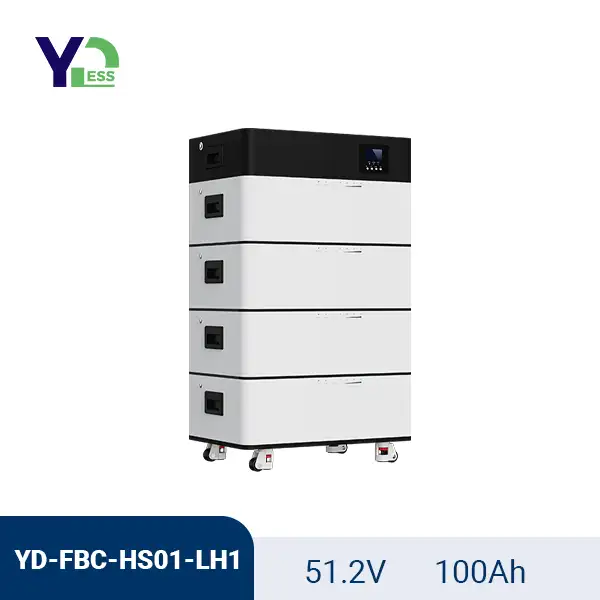

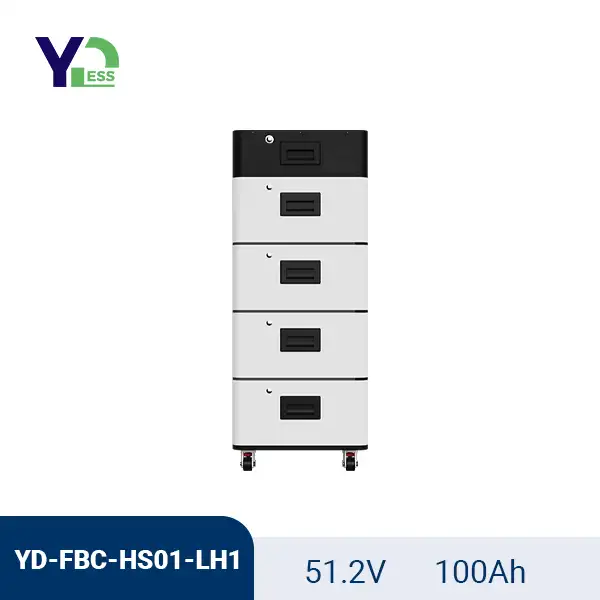

Model: YD-FBC-HS01-LH1
Product rated energy: 20.48kWh
Rated Power: 5500W
Rated capacity: 100Ah
Rated voltage: 51.2V
Battery: LiFePO4
Standard charging current/discharge current: ≤100A / 100A
Installation method: Stackable
Product Weight: ≈257Kg
Product Size: 602*403*1063mm
Custom: ODM | OEM | Shape | Size
MOQ: 1 pcs
Inquire Now

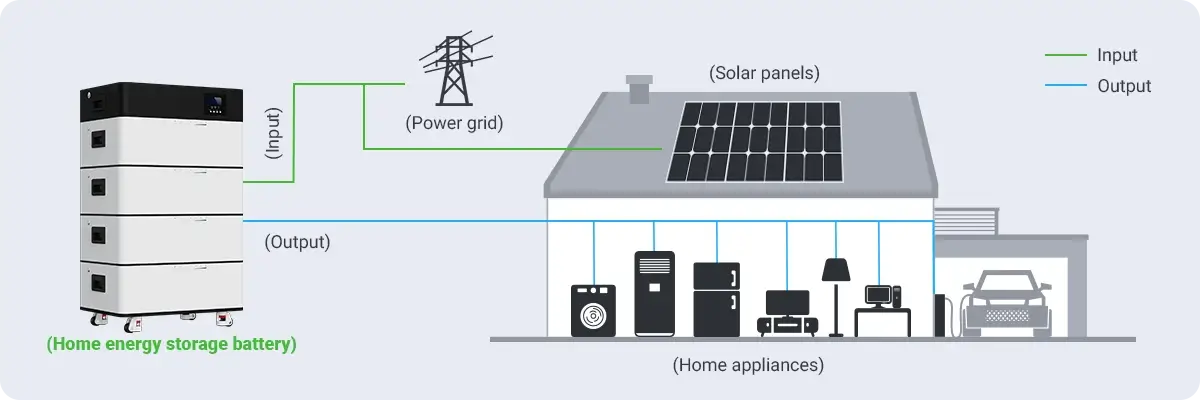

Charge with Solar
When your YDESS home energy storage system is connected to an external solar panel, it can generate energy during the day. All your unused energy will be stored in your system. This energy will be used by the system in the future, saving your family a lot of money.
Increase Your Energy Independence
In daily life, people's electricity consumption will be overly dependent on the power grid, which is a very bad phenomenon. There will be occasional power outages or power outages due to emergencies. After you use the home energy storage system, your dependence on the power grid will be greatly reduced.
Enjoy More Solar Savings
Solar energy is a very clean energy without any harmful substances. While helping you save electricity costs, solar energy can also feed back to your family, selling excess electricity to your local power company, bringing your family an extra income
All-in-One Installation Solution
Energy storage + management equipment in one

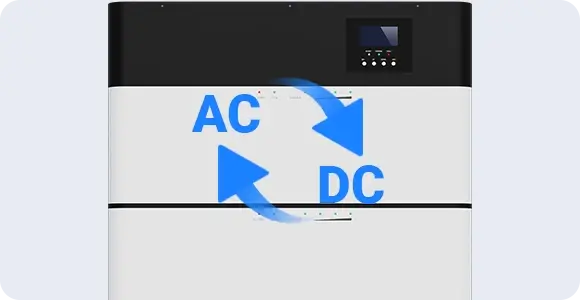

Built-In Converter
Built-in AC-DC converter, no additional equipment required

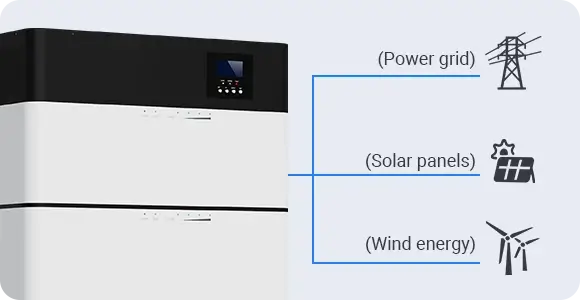

Multiple Charging Methods
Mains power, solar power, wind power

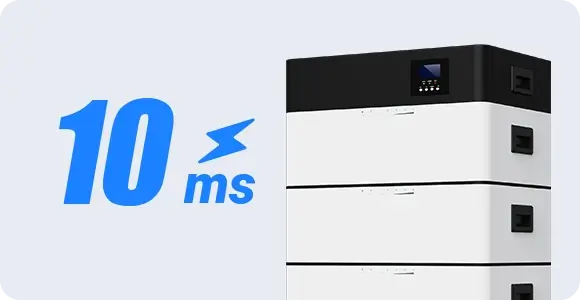

UPS
Power failure, no sense, 10ms response time
Yidi (Guangdong) New Energy Technology Co., Ltd. start to enter the industry of lithium battery in 2013, is a source strength
factory that integrating R&D and design/ production and process/customization and sales.
Specializing in the processing of lithium iron phosphate (LFP) batteries and ternary lithium batteries; R&D and manufacturing of
a series of energy storage products such as power banks/solar power banks, emergency car jump starters, power batteries, portable
power stations, home energy storage power supplies, C&I energy storage cabinets.
As a new energy and high-tech company, YDESS will continue to the deep cultivation of products, adhering to the principle of "R&D is
the first productivity", and continue to provide better OEM/ODM technical solutions to meet the growing needs of customers.
Production Line
Production Line
Production Line
R&D Laboratory
Testing Workshop
YDESS As a professional production factory, we can accept ODM/OEM
Capacity:
Customizable capacity of home storage products.
Cell:
Different types of battery cells can be selected.
Stacking:
Customizable cabinets allow batteries to be stacked
Logo:
Customize lamination and logo on the shell.
Download 5KW Stackable Home Storage Battery Datasheet
| Model: | YD-FBC-HS01-LH1 | |
| Inverter module: | Phase number | Single Phase |
| Rated output power | 5KW | |
| Maximum PVinput power | 5200W | |
| PV open circuit voltage | 500Vdc | |
| MPPT voltage range | 120-450Vdc | |
| Grid voltage range | 110V(90-280Vac)+2%,220V(170-280Vac)+2% | |
| Output frequency | 50Hz/60Hz (Automatic detection) | |
| Battery voltage range | 40-60Vdc (±0.6Vdc) | |
| Class of protection | IP21 | |
| Size: Length* Width * height (mm) | 602*403*139 | |
| Weight (kg) | 25 | |
| Battery module: | Rated voltage | 51.2V |
| Nominal capacity | 100Ah | |
| Cycle number | DOD80%>6000 Times | |
| Class of protection | IP21 | |
| Scalable quantity | 1-8 | |
| Size:L*W*H(mm) | 602*403*200 | |
| Weight (kg) | 55 | |
| Base: | Dimension:L*W*H(mm) | 602*403*124 |
| Weight (kg) | 12 | |
| Conventional data: | Ambient temperature | Charge: 0°C~45°C, Discharge: -20°C~60°c, Storage: 0°C~ 40°C, Humidity: ≤85% RH |
| Cell certification | CE, UL,IEC 62109-1&-2,IEC 62477,EN61000, UN38.3 | |
| Battery certification | CE, UN38.3, MSDS, DG shipping doc. | |
YDESS invites you to leave your contact information so that we can provide you with product support in the future.
Generally speaking, there is no upper limit to the battery capacity of a home energy storage system, just like you can connect many batteries in series for use. However, we recommend that customers consider customizing the appropriate capacity of the home energy storage battery based on their budget and home electricity needs, rather than blindly pursuing the maximum capacity.
